FLATCELL |

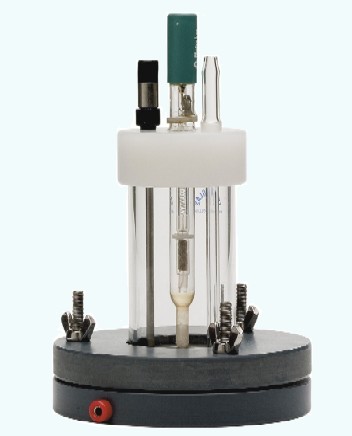

Complete flat cell
setup, incliding reference electrode, counter electrode,
and gas inlet.
|
FLAT CELL フラットセルは大面積コーティングされた或はベアメタルサンプルの電解液中に腐食性質を調べるため、デザイされました。サンプルとガラスセルはセル底部のPVCホルダーに固定されます。液漏れはOーリングと3つのナットの使用することによって防止されます。サンプルの直径58mm〜85mmで、電解液と接触面積は16.9
cm2です。蓋の材料はPVDF (ポリフッ化ビニリデン)です。密封性があります。ステンレス(SS316)カウンター電極、銀塩化銀参照電極(6.0733.100J)とガスパージ用ガラスチューブが付きます。
The flat cell has been designed to measure corrosion properties
of large flat coated or bare metal samples immersed in an electrolyte
solution. It consists of a glass vessel fitted on a PVC holder,
leakage of electrolyte is prevented by the use of a Viton O-ring
and three wing nuts. The exposed surface area of the sample
is 16.9 cm2. The flat cell is supplied with a large area stainless
steel counter electrode and Ag/AgCl reference electrode.
定価 138,000円
|
